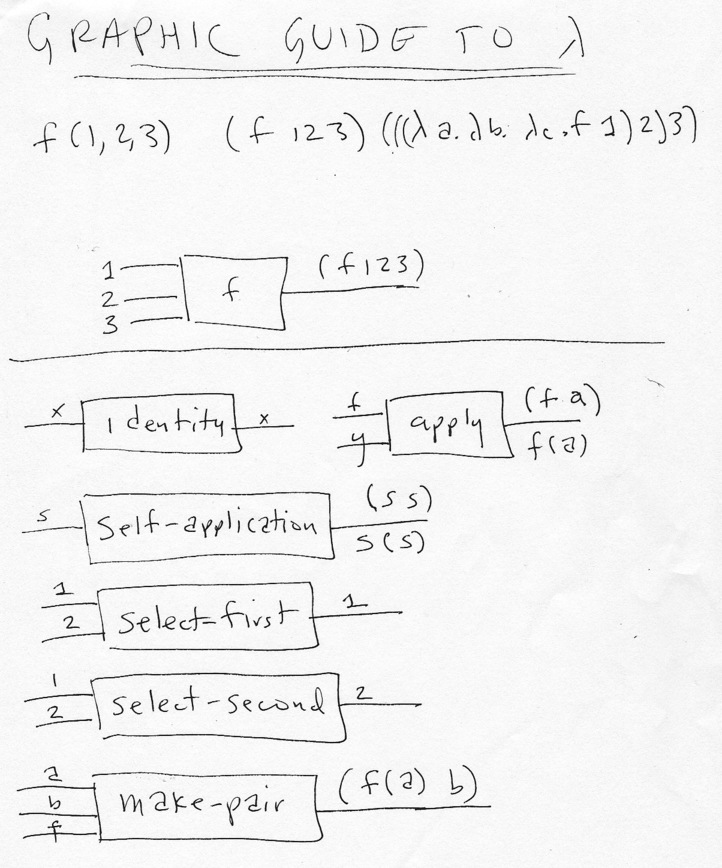

GRAPHIC GUIDE TO LAMDA CALCULUS 1/5
Perhaps twisted approach I made up to help me understand this stuff.
Maybe only of interest as an example of trying to reformulate concepts
in possibly (or not) helpful ways.
Spoiler: use
select-first to represent TRUE and
select-second to represent FALSE, and a
version of

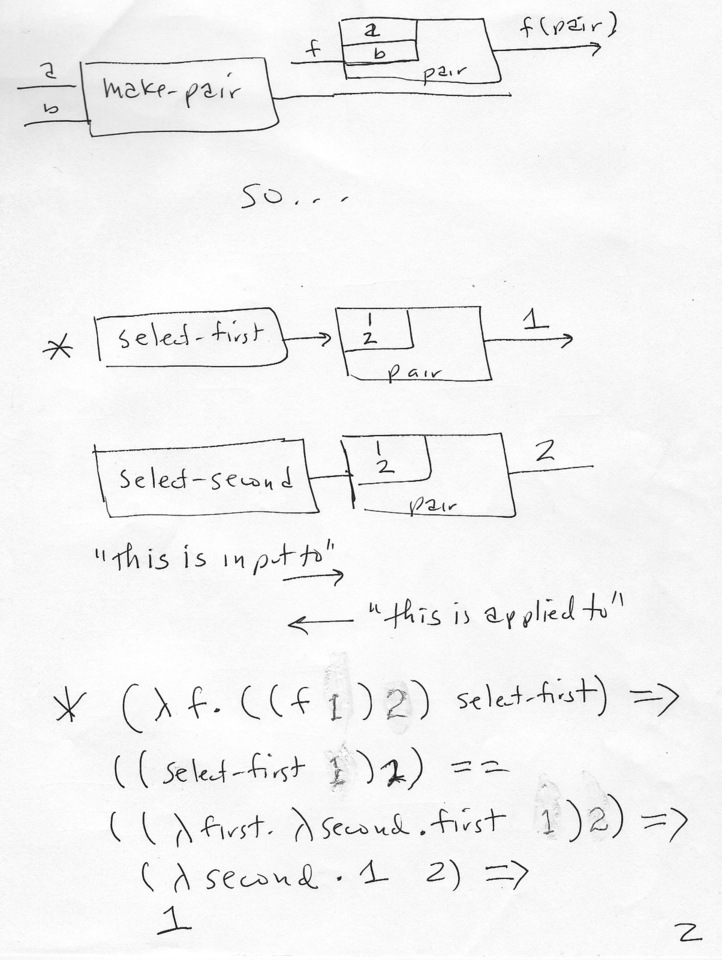

make-pair to build the logical
operations. Everything's a function, we need to make pieces fit
together.
C-language conditional statement:
< condition > ? < expression >
: < expression >
selects first expression for evaluation
if condition is true, second if it is
false. So to set absx
to the absolute value of x we'd say
absx = x<0?-x:x.

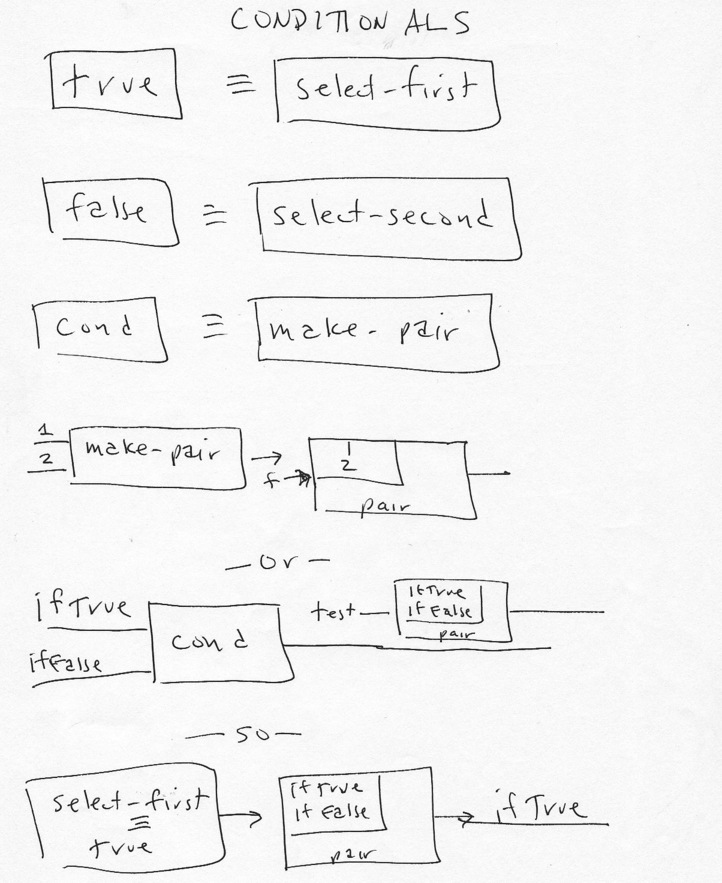

We can model a conditional expression with a
version of make-pair:
def cond = λ e1. λ e2. λ c.((c e1) e2).
def cond = λ e1. λ e2. λ c. ((c e1) e2).
The condition is the third
argument. It takes two applications to go
from
((cond < exp1 > ) < exp2 > )
to
λ c. ((c < exp1 >) < exp2 >)
Claim: If this expression is applied to
select-first it evaluates to < exp1 > and
if it is applied to select-second it
evaluates to
< exp2 >. So...
def true = select-first
def false = select-second
As in:
if_cond ? then-action : else-action

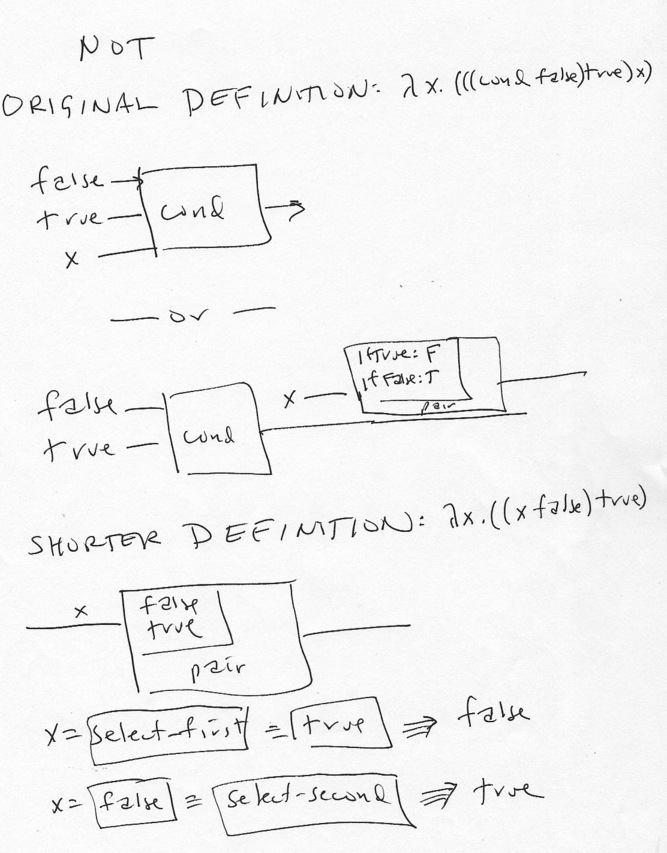

NOT is a unary function that should look like
NOT < operand > ,
described by truth table:
X NOT X
------------------
FALSE TRUE
TRUE FALSE
Written as a C conditional, (our primary translation technique
for logic operations -- we use a pair!),
NOT is: X? FALSE: TRUE.
Thus:
def not= λ x.(((cond false) true) x)
Think of
(cond < value if true > < value if false >
< condition a>)
as
a ``then-else-if'' statement.
def not= λ x. (((cond false) true) x)
Simplify inner body:
(((cond false) true) x) ==
((( λ e1. λ e2. λ c. ((c e1) e2) false)
true) x) =>
(( λ e2. λ c. ((c false) e2) true) x) =>
( λ c. ((c false) true ) x) =>
((x false) true)
Put that back into
definition of not:
def not = λ x.((x false) true)
We'll use this form of simplfication again:
(((cond false) true) x) =>...=>
((x false) true)
Test: NOT TRUE:
(not true) ==
( λ x. ((x false) true) true) =>
((true false) true) ==
(( λ first. λ second. first false) true) =>
( λ second. false true) =>
false.

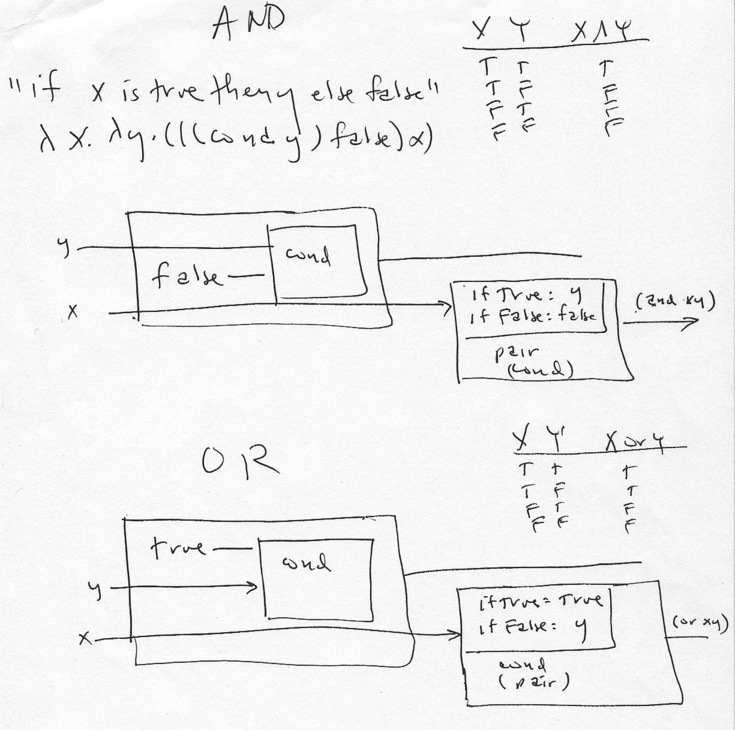

X Y X AND Y
-------------------
TRUE TRUE TRUE
TRUE FALSE FALSE
FALSE TRUE FALSE
FALSE FALSE FALSE
---Notice that for
< l-operand > AND < r-operand > ,
def and = λx.λy.(((cond y) false) x)
Evaluate inner body:
(((cond y) false) x) ==
((( λ e1. λ e2. λ c. ((c e1) e2) y) false) x) =>
(( λ e2. λ c. ((c y) e2) false) x) =>
(λ c. ((c y) false) x) =>
((x y) false),
This is more elegant. It's just a conditional, saying "if x is true
evaluate to y, else false", so we'll use
def and = λ x. λ y. ((x y) false)
Does it work? Try TRUE AND FALSE:
((and true) false) ==
((λ x. λ y. ((x y) false) true) false) =>
(λ y. ((true y) false) false) =>
((true false) false) ==
((λ first. λ second. first false) false)=>
( λ second. false false) =>
false
X Y X OR Y
-------------------
TRUE TRUE TRUE
TRUE FALSE TRUE
FALSE TRUE TRUE
FALSE FALSE FALSE
Similar to AND:
< operand > OR < operand >
Given what we know
(conditionals, selectors) we say:
if first operand is TRUE, so is final value of OR. Else the final value is the second operand.
In C: conditional X ? TRUE : Y
With selectors: if the first operand is true, select TRUE. If the
first operand is false, select the second operand.
def or = λ x. λ y. (((cond true) y) x)
Simplifying as with AND leaves:
def or = λ x. λ y. ((x true) y))
Practice on this: FALSE OR TRUE.
Perhaps twisted approach I made up to help me understand this stuff.
Maybe only of interest as an example of trying to reformulate concepts
in possibly (or not) helpful ways.
How do we implement datatypes with constructors (e.g. cons, zero) , tests (e.g. null, ≤), and selectors (e.g. car, cdr)?
I'll not even describe the general solutions by Church and by Dana Scott, but will go immediately to the specialized case of natural numbers.
We'll see three closely-related solutions to this problem.
Begin with recursive definition in terms of a "first" number zero, 0 and the successorfunction: 1 is the successor of 0; 2 is the successor of 1, or the successor of the successor of 0, etc. ad infinitum.
Once we find constructor functions for
zero
and successor, succ, then:
def one = (succ zero)
def two = (succ one)
def three = (succ two)...
Thus
two = (succ (succ zero))
three = (succ (succ (succ zero)))
...
Then of course an issue is how to use such a "unary" number representation (say to do arithmetic).
Church's encoding: use depth of expression nesting to count. Elegant but the Predecessor(N) function (as in pred(three) = two) takes O(N) to compute.
Scott's encoding: use depth of function application nesting to count. Needs different approach to arithmetic and test algorithms.
Our text uses what I call "Michaelson's encoding", which is like Scott except a number N is nested pairs, each of which has, if you like, a car with the answer to iszero, (i.e. false) if N>0, and the predecessor of N as the cdr-- thus cdr of zero ends the "list".
See: "A tutorial introduction to the lambda calculus", Raul Rojas, FU Berlin, WS-97/98.
"Directly Reflective Meta-Programming", Aaron Stump, Computer Science and Engineering, Washington University in St. Louis, St. Louis, Missouri, USA.
Generally, constructors can have different arity (zero:0, succ:1, cons:2,...) -- Church implements the recursive action (say of cdr or succ) in a way that acts like an iterator.
We'll use natural numbers as a familiar, easy (and usual) example.
def zero = λs.(λz.z)
Now we notice that zero is good old select-second,
and that's because all the iterators of the data type are contained in
Church's encoding and we'll see that zero is the second one, formally,
and successor is the first. So the s and z in these
definitions can be thought of as "sucessor iterator (constructor)" and
"zero constructor". That's a mnemonic, not a semantics!
We can forget Church and iterators entirely (so let's do that), and think of these definitions as being entirely arbitrary.
We'll use this shorthand for functions of more than one variable:
(λfa.(f a) p q) => (p q)
Important: args are in same order
as their λ's, and the first one (here f) is substituted
first (by p) in evaluation, with q substituted
for a second.
def zero = λsz.z = λs.(λz.z)
def one = λsz.s(z)
def two = λsz.s(s(z))
...
So if the functions that compute successor and zero, AND the numbers
0,1,2, ... are given the two functions succ and
zero,
as parameters, then
λsz.z makes sense for zero and
λsz. s(z) literally looks like "successor of zero".
The vital successor function:
def succ = λw. λy. λx.(y ((w y) x))
Note that we can write this in shorthand (3 args; evaluate
concatenated functions left-associatively)
def succ = λwyx.y(wyx)
Let's check:
succ zero = (λwyx.y(wyx))(λsz.z) =>
λyx.y(λsz.z)yx) => % inner sel-2, lose y
λyx.y(λz.z)x) =>
λyx.y(x) = one
So far no O(1) implementation of predecessor has been found for this encoding...they all involve a nested recurrence N deep to get back to zero.
Recall
def one = λsz.s(z)
whose body sz is the application of the function s
to
z.
Adding two to three amounts to applying succ twice to three.
It turns out we can do that like this for 2+3, just concatenating
two with succ with three.
2S3 = (λsz.s(sz)) (λwyx.y(wyx))
(λuv.u(u(uv))) =>
(λwyx.y((wy)x)) ((λwyx.y((wy)x))
(λuv.u(u(uv)))) = SS3
Notice that addition here is done without recursive calls, but with
normal-order β-reduction, i.e. textual substitution.
There are only λs at the topmost level, so here the number of
s's in the expression for 2 determined how many time the S
function is applied to 3.
Here's multiplication of x, y:
(λxyz.x(yz)) % so 2*2 is
(λxyz.x(yz))22 =>
(λz.2(2z))
which turns out to give four. I find it rather miraculous that these algorithms work! + I get, but * I haven't seen through yet.
As mentioned above, Church resorts to a nesting of pair functions to
allow
computation of pred. Here we abandon Church and go right
to the treatment in our text:
def zero = identity
def succ = λ n.λ s.((s false) n)
This choice models numbers as functions with selector arguments. The pair function is at the bottom of it all (definition of succ.)
When succ is applied to a number it builds a pair function
with false first and the original number second.
E. g.
one ==
(succ zero) ==
(λ n. λ s. ((s false) n) zero) =>
1 λ s. ((s false) zero)
three ==
(succ two) ==
(λ n. λ s. ((s false) n) two) =>
2 λ s. ((s false) two) ==
λ s. ((s false) λ s. ((s false) one)) ==
λ s. ((s false) λ s. ((s false)
λ s. ((s false) zero))).
So the number is represented by the level of nesting ---
sort of unary representation, in which (with F for
FALSE), the number 6 ``looks like'' a nested function
F (F (F (F (F (F identity()))))).
By the definition of succ, (illustrated in ONE and THREE defs),
any number looks like
identity (if zero) or
λ s. ((s false) < number >)
(if positive).
Let's try to implement unary function iszero.
Try sending select-first selector in as the argument
of a non-zero number:
( λ s. ((s false) < number >) select-first) =>
((select-first false) < number >) ==
(λ first. λ second. first false) < number >) =>
(λ second. false < number >) =>
false
If send select-first to zero:
zero select-first ==
(λ x. x select-first) =>
select-first ==
true
since true is defined as select-first.
So...
def iszero = λ n. (n select-first) .
pred is the inverse of succ.
pred(one) => ... => zero
...
pred(three) => ... => two
...
In representation for positive numbers created by
succ:
3 λ s. ((s false) < number >),
pred
must strip off a layer of nesting and return the
< number >
found inside.
select-second applied to the rep. of line 3
returns
the
< number >, (again, not unlike cdr).
BUT! def pred1 λ n. (n select-second) isn't good enough: zero has no predecessor with non-negative numbers.
Special-case hack to deal with natural (non-negative) integers and pred.
< number > = zero ? zero :
predecessor of < number >
def pred = λ n. (((cond zero) (pred1 n))
(iszero n))
Simplifying the body is an exercise, giving
(((iszero n) zero) (pred1 n))
In this, substitute the definition of pred1 and
make an application to produce (another exercise)
4 def pred = λ n. (((iszero n) zero)
(n select-second))
We'll study Scott's encoding in the exercises, but it's just Michaelson's without the "frozen-in" false and true values in the pairs. That means rather than just reading out the answer for iszero it must be computed by a little test function.
Also we haven't mentioned it in this light, but Scott's (and thus Michaelson's) encodings are naturally thought of in terms of continuations, or "what happens next". Usually what happens next in these number representations is we operate on the predecessor or we find a base case, and these continuations are just the functions that make up the nested-lambda number representations (Scott, Michaelson), not the outer-lambda-only representation of Church.
Church:
Evaluation by β-reduction (!!).
def zero = λ.s λz.z
def succ = λw. λy. λx.(y ((w y) x))
2 = λs.λz.s(s(z))
Scott:
Evaluation by recursive function application.
zero = λs.λz.z
succ = λn.λs.λz.s n
2 = λs.λz.s(λs.λz.s(λs.λz.z))
Michaelson:
Evaluation by recursive function application.
def zero = identity = λx.x
def succ = λn.λs.((s false) n)
2 = λs.((s false) λs.((s false) zero))
Note limited scope of the s,zs in Scott and Michaelson!
zero = λxy.y %select-second
2 = λxy.x(λxy.x(λxy.y))
%sel-1st sel-1st sel-2nd
Important Applicative order semantics! Eval. Arguments First! (-> not =>)
Predecessor: show
pred = λz.z (λp.p) 0
Rationale: Assume N not 0. pred N first copies N to front with first identity
function (λz.z). Now N is applied to the last two arguments: N's first
λ expression is sel-1st, which chooses arg1, (λp.p),
and ignores 0 (arg2). The identity function (λp.p) is substituted
in place of the first sel-1st's
body (so the first sel-1st vanishes)
and applied to the rest of the original N, yielding N-1.
Let's try
pred 2 == λz.z (λp.p) 0 2 => % copy 2 to front
2 (λp.p) 0 -> % evaluate first sel-1st of 2,
% get id fn (1st arg) and lose 2nd arg
(λp.p λxy.xλxy.y) -->
(λp.p 1) ->
1
For
pred 0 == λz.z (λp.p) 0 0 => % copy 0 to front
0 (λp.p) 0 -> % 0 is sel-2nd, so
0
---Abandon some ()s: use
< function > < arg1 > < arg2 > ... < argn >
for
( ... ((< function > < arg1 >) < arg2 >) ... < argn >)
In the non-parenthesized form, a function is applied first to the
nearest argument on its right. If the argument is a function
application itself, its parens must stay, and we keep parens around
function body applications. So from above:
4 def pred = λ n. (((iszero n) zero)
(n select-second))
⇒
def pred = λ n. ((iszero n) zero
(n select-second))
Rewrite
def < names > = λ < name >. < expression >
where
names is one or more < name >s, as
def < names > < name > = < expression >
That is, drop the λ and its . altogether
and bring the bound variable over to the left of the =.
E.g
def identity x = x
def self-apply s = s s
def apply func = λ arg. (func arg)
def apply func arg = func arg
def select-first first = λ second. first
Continue with our new simplifying
tool:
def select-first first second = first
def select-second first = λ second. second
def select-second first second = second
def make-pair e1 = λ e2. λ c. (c e1 e2)
and the last line yields
def make-pair e1 e2 = λ c. (c e1 e2)
def make-pair e1 e2 c = c e1 e2
Last line transforms cond's ``then-else-if''
semantics to ``if-then-else''. (Recall
cond and make-pair are the same!).
5 def cond e1 e2 c = c e1 e2
def true first second = first
def false first second = second
def not x = x false true
6 def and x y = x y false
7 def or x y = x true y
Replace
cond < true choice > < false choice >
< condition >
with
if < condition >
then < true choice >
else < false choice >.
This form, along with line 5
helps explain lines 6 and 7:
def and x y =
if x
then y
else false
def or x y =
if x
then true
else y
(...(( < function > < arg1 >) < arg2 > )
...< argN >) ==
< function > < arg1 > < arg2 >
... < argN >
def < names > =
λ < name >. < expression > ==
def < names > < name > = < expression >
if < condition>
then < true choice >
else < false choice > ==
cond < true choice > < false choice >
< condition >
