Programming in Matlab: (Attaway 2, 5)

Zen and the Art of Programming

Programming is like building a motorcycle in that we want to create a complex and beautiful artifact * that functions correctly and efficiently *.

• Have tools, have parts.
• Need to select right tools, right parts, understand them well enough to get the job done.
• Or preferably better, as then we can recognize a superior part or tool if we run across it.
• So tadpole, begin by learning about the functions and commands of your language, and the syntax they entail.
• Master them, for beyond, loom great strategic issues like hierarchical, modular design...

(Of course in reality, programs are not always beautiful... *, or as functional as hoped... *)

Matlab Is what it Is

• Matlab is forgiving, for a programming language, but it's still very literal-minded (of necessity ... can't have ambiguity). So can't say
  'sqrt 4';
  when you mean
  sqrt(4);

• Learn the syntax. That is, the "grammar" of the language. Bad syntax slows down programming, derails your train of thought, Bad enough syntax means error messages can be unhelpful.
• Learn the semantics, That is, the "meaning" of the instructions you write. Being unclear on the semantics leads to fuzzy thinking (fine in its place, but unhelpful when encoding algorithms).

Algorithms (Attaway 2.1)

Intuitive Notion of Algorithm

• Get input.
• Process input using a well specified procedure to obtain results
• Output results

Computational Notion of Algorithm

• Get input in discretely coded (symbolic) form.
• Process input, generating discretely coded results, using a finitely represented discrete process that is described using a formal specification language (e.g. a Matlab program or a Turing Machine description)
• Output results to some user.
• The concept is sometimes broadened to include multiple, interacting input and output phases.

Input

• Input can come from many sources, and represent many things, including simple numeric objects, text, sound, imagery, structured data such as coded census forms, or input from any number of sensors or detectors.
• Sometimes input is stored data and can be processed at leisure. This is sometimes referred to as batch mode. In other cases, the input is associated with some ongoing process. and must be processed under real-time constraints of varying importance.
• Input can involve complex real-time methods interacting with sophisticated devices.

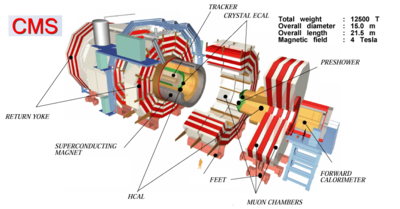

  Compact Muon Solenoid Detector (Wikipedia). Find the person for sense of scale. Generates 40 Terabytes (40,000,000,000,000 bytes) of data per day!

• For us, input from keyboard, files, microphone, analog-to-digital converter, maybe mouse and other user-designed GUIs (Attaway p.405).

Processing

• Processing could involve millions of lines of structured code developed over decades by hundreds of individuals, institutions, and businesses. The result is not always pretty. *
• Processing is frequently interleaved in complex fashion with input and output operations.
• In modern applications, there are often several to many processing resources available, some special purpose, others more generally targetable, which operate simultaneously and in parallel, and must interact with each other in precisely defined ways.
• Coordinating such multiple resources is an immensely difficult issue that is the subject of several entire subfields of computer science.
• We will largely avoid the complexities of parallelism in this class, but note that the machine on your desk contains dozens of separate computational elements, all interacting (reasonably) smoothly and efficiently. Standardized interfaces are key.

Output

• Output can be text to be printed, graphic images for display, data-streams to be converted to sound, or control signals to one or more possibly complex devices (e.g. an aircraft or nuclear reactor)
• For us, output will typically be text, graphics, and a few simple control signals.
• It's a research issue to display multi-dimensional data, or complex dependencies, or phenomena involving time and space varying over many orders of magnitude. Our own Center for Research Computing (CRC) here at UR, does significant work in this area.

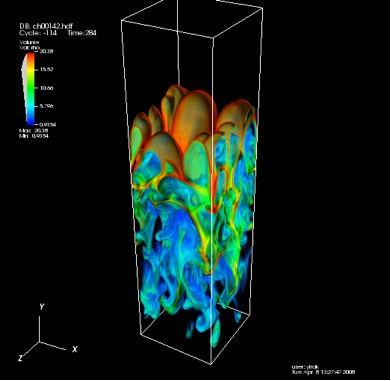

  Visualization of big simulation of Raleigh-Taylor instability caused by two mixing fluids (courtesy Rochester Center for Research Computing).

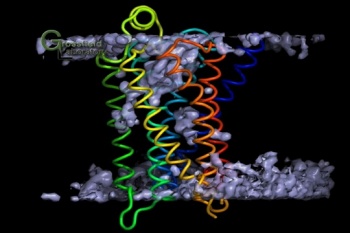

  Lipid bilayer (courtesy Rochester CRC).

• Read All About It! Many books on algorithmic thinking, tops-down problem-solving techniques, often related to a particular computer language (Library, Amazon, Google...). Here we'll mostly learn by doing.

Keyboard Input (Attaway 2.3)

• To get user input via the keyboard, use the input() built-in function. For instance
  My_joules = input('Enter work (in joules): ');

  causes matlab to print

  Enter work (in joules):

  to the command window, and then wait for the user to type a numeric value followed by a return. This value is then assigned to the variable My_joules.

• Input() can be used to read strings as well: either the user response is in quotes or use ('s') as optional 2nd argument:
  new_string = input('Enter a string', 's');
• Also vectors and matrices if the [1 2 3; 4 5 6; 7 8 9] format is used.

Printed Output (Attaway 2.3)

• Printed output can be sent to the command window using either disp() or fprintf(). disp() takes a single argument, (which can be a vector or matrix or string) and displays its value in a format chosen by matlab. For example,

  disp('Input must be positive!'); % an error message disp(sqrt(a^2+ b^2)); % answer for a computation
• fprintf() can be used to generate more complicated output with a format chosen by the user (e.g. in printing tables). It is very similar to commands found in C, C++, and lots of other languages. The details can be complicated, and you can look them up using help or other references (the book...).

  The basic idea is a string with slots indicated by "%xxx" for the values to be printed, where "xxx" is a code indicating what sort of value is to be printed, and how it is to printed. For example,

  fprintf( 'Y(%d) is %f \n',i, Y(i));

  prints something like

  Y(43) is 77.4532

  The format string indicates that an integer value (indicated by %d) and a float value (indicated by %f) are to be printed in the string at the specified locations, and are obtained by evaluating i and Y(i) respectively.

• Note on printing out formatted vectors and arrays: Since most arrays are not part of the ultimate output for a problem, printing them mainly shows up in debugging... This can be easily done by just mentioning their name (without a semicolon) to get matlab to print the current value, and then commenting out the line when no longer needed. ... A = Some_Function(B, C,D); A % comment out when not needed %B used to print out B, now I don't

File Input (Attaway 2.6)

• Getting data into a computer for processing has always been a bit of a bottleneck. Originally punch cards were used.
• We can initialize variables and arrays by typing to the command window, and we can get user input using the input() function, but this is slow.
• Particularly a killer if you have to leave Matlab and come back to work later - all that data you entered or generated has to be re-entered or regenerated.
• Matlab provides a solution to the latter problem with the load command, which permits variables and arrays previously saved to a file (with the save command) to be restored.
• Simplest version is simply

  load

  which searches for a file called matlab.mat into which Matlab state was (presumably) previously saved. Saved variables are created and assigned the previously stored value. Any existing variables with the same name as a saved variable are overwritten.

• Variations allow a particular file to be specified, so that separate sessions can be restored.

  load mywork.mat load('mywork.mat')
• If an ascii file is read (no .mat extension suffix) the data in the file, which must be a rectangular array of numbers, is read into an array variable with the file name. E.g.,

  load mydata.dat load('mydata.dat')

  reads the data into a variable called mydata (note the extension .dat is lost)

• With care, a file with a rectangular array of numbers can be created by a text editor, or a program in some other language, and thus read into Matlab. This provides a way of importing external data.

File Output (Attaway 2.6)

• The useful command save allows you to save current Matlab data objects to a file so that they can be recovered in another session using the load command. Unadorned, the command saves the entire workspace to a file called matlab.mat. Various options allow you to specify a different filename, only specific variable names, and even change formats (default is a special matlab format).

  save matrix_file MyMatrix save('matrix_file', 'MyMatrix');

  Both save the array MyMatrix to a file called matrix_file.mat. Note that the names must be quoted in the function version.

• To save data in a format readable by other programs such as a text editor or file printing program the -ascii option must be used. In this case it is conventional to append the suffix .dat to the filename to indicate that it contains data.

  save matrix.dat another_matrix -ascii save('matrix.dat', 'another_matrix', 'ascii');
• The -ascii version is good for generating output you want to look at later, but not so good for reading back into Matlab, as it does not encode the names of the variables as does the .mat format.
• If multiple variables are stored to be read back using load they must all have the same number of columns. Only (2D arrays of) numbers can be saved and loaded. Strings are converted into a useless-for-reading numeric form.
• To output more general data, such as readable text strings, formatted tables, etc, lower-level file I/O must be used (Attaway, chapter 8). The functions fopen() and fclose() open and close files, and a version of fprintf() is used to write formated data to them. A function called fscanf() is used for reading such formatted intput back in. These functions, originated in C and are now common parlance in modern programming languages. Read the text if you are interested.

Review: Scripts and Functions

• Recall that scripts are sequences of matlab commands, hence programs to be interpreted. Each is stored on disk in a file with a name you make up, e.g., IO_script1.m.
• Similarly, functions are sequences of matlab commands with associated input and output conventions, and thus are also (sub)programs. As with scripts, each is stored in a disk file, but with a name that must be the same as the function, e.g., my_super_sin.m.
• Assuming matlab is running in the directory that a script is stored in, (or has a PATH to it) typing the script name in the command window, thus,

  >> IO_script1

  causes it to be interpreted and run.

• Typing

  >> type IO_script1

  causes the script to be printed out.

• Similarly, functions in are invoked by their name followed by the appropriate arguments in parens, e.g.,
  my_super_sin(pi/4);
• Programmers often nest function calls since problems often fall apart into almost-independent sub-parts. Functions provide a way to structure your code and abstract useful functionality, just as built-in functions do. E.g.,
  elt_tot = sum(sum(My_Mat)); % built in Dist = Euc_dist(Pt1, Pt2); % user-written
• To create a script or function, go to Matlab: Top command tab FILE, then New... then script, or function. Type in your code, then (CTRL-X) CTRL-S or use menu commands to save. Assign script name at first save.
• If you are writing something at all large in a single file, (which you should try to avoid doing in Matlab by breaking your work into small, functional units) it is a good idea to save unfinished work periodically so that you don't lose it if you accidently kill Matlab or destroy the window.
• Document your code well using % lines.

Write a script that calls functions....

E.g. in current programming exercises, Attaway 5.18, 5.23.

Say we want: function to get input from user, function to compute results, function to plot. All held together by a script. Given a function mpg() that returns mpg given a vehicle's weight and speed, write a script to get data from user, derive his mpg at a range of speeds, and plot the result. Need four .M files and a script:

function [min_speed, max_speed, weight] = get_speedrange_and_weight(); % perhaps query user, read a file, whatever... function mileage = mpg(speed,weight); % given from physics or empirical model: % returns one mpg figure for given speed and weight function [speedvec, mpgvec] = mpg_range(lowspeed, highspeed, wt); % calls mpg() for a wt and range of speeds function display_mpg_graph(speedvec, mpgvec, title_string); % plots mpg for my range of speeds and weight % with given title. ... % main script (note use of names!) [lo, hi, wt] = get_speedrange_and_weight; [xvec, yvec] = mpg_range(lo, hi, wt); display_mpg_graph(xvec, yvec, 'MY Hummer MPG');

Programming and Problem-Solving

• Programming is useful as metaphor and method for general problem-solving.
• Clarifies the degree to which you actually understand a problem and solution method.
• Many 'Programming and Problem-solving in X' books
• Hard to find principles, easy to find syntax lessons
• Some classic books like Programming Pearls assume too much experience for us, but are good to aspire to.
• Matlab books are often nothing but lots of recipes using mysterious matlab capabilities cutely. Fine unless you want to understand something.
• Attaway is best of Matlab crop, IMO

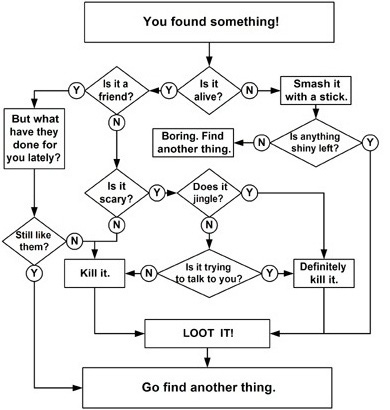

Flowcharts

There have always been graphic aids for programmers to plan or document algorithms. They're trendy, depending on the characteristics of the languages and current 'wisdom' (theories).

In flowcharts, emphasis is on program flow, loops, testing. Box shape indicates functionality. Can get huge.

From Google Images, which has quite a lot of amusing and edifying examples.

Unified Modeling Language

What would one expect in the days of XML?

UML Examples

These later diagrams emphasize the object-oriented model: conceive program pieces as objects to which one sends messages and from which one gets replies. What goes on inside is generally not to be visible or accessible.

A Good Bad example: Matlab 2-D arrays are actually stored as 1-D arrays, and you are invited to use this fact (say by indexing with a single dimension) rather than not know it.

Abstract Data Structures, Objects and Methods: Ways to keep knowledge about structure from user. Yields transparency, modularity and allows invisible revision of the implementation.

Programming Hints

Just our opinions..

• Don't ever start with anything big. E.g. try building and running scripts one line at a time!.
• Leave off ;s at first to see all intermediate results.
• Don't deal with "real data" until the last minute. If the assignment deals with 100-long vectors, use 3-long vectors instead until everything works.
• Know your syntax -- don't guess, don't hope for "do what I mean".
• Know what to expect: can't spot mistakes with a "looks good to me" attitude.
• Use small functions that you debug completely as you write.
• On other hand, often work top-down: for instance a three-line
  X = get_input(); Y = process(X); analyze(Y);

  could be where you start. Then the big pieces are broken down into smaller functional pieces (this is usually the hard part, finding that elegant decomposition) and those pieces are decomposed, etc.

• Often a mixed middle-out, top-down bottom-up process with revisions. What these pieces (for us, functions) expect for arguments and return as results, and where the results go, is the sort of thing represented by this kind of chart (Google Images):



• choosing data structures and algorithms: This is a vital skill, but we don't need to think much about it. All our data structures are arrays, and about the only algorithms choices we get at our level is which ODE solver to use.
• Still, we get to choose between several control statements if, elseif, for, while,..., for instance. Or several versions of Matlab built-ins! Always try to select the right tool for the job.
• Be tireless in looking for new programming tools (e.g. new matlab commands or alternative arguments or outputs)
• Let the program do the work. If your data would best be shown as a plot, don't produce a table, much less a file full of unprocessed numbers. If you're trying to find an optimum value output produced for an input you get to choose, let the computer do the search. (Don't call it from top level a zillion times with different inputs and scrutinize all the results.)
• Minimize use of global variables: they're confusing since you can't tell where they are modified from. Pass in function variables explicitly.
• Comments and documentation are vital: it is very easy to forget even overnight what code means or does.
• I find Matlab easy to debug (lose the ;'s), but sometimes you want to stop execution and look at current values of variables, etc. Try clicking the - between the line number and the line in the editor. Learn about the debugger.
• As always, Read Attaway's Summary and Hints at end of each chapter (here, p. 191.) Pretty low level but it's something, and presumably came from experience.

Programming for Debugging

Attaway 5.5

• Write Debug-friendly code: write small functions, do big formulas in small parts with intermediate results that you might understand as they evolve and will print with a simple ; deletion.

  E.g. in a nested for-loop to compute mean of a matrix we might have written
  mymean = (mymean + matrix(row, col)) ... / (Rows*Cols); Trying the "simple input, drop the ;", strategy shows something's wrong but isn't too helpful running on [1 1 1]: mymean = 0.3333 % as expected... mymean = 0.4444 % oops. mymean = 0.4815 % yikes! Even this simple formula may have too much going on for easy debugging since all the 'necessary parts' are stuck in one statement. We could rewrite the code to examine relevant partial results, or we could think -- either way we might wind up by rewriting the formula above to expose its parts: its gist is
  mean = mean/N + x_i/N
  Is that what we really want?

• Sometimes even save intermediate data for later examination.
• Run simple cases. E.g. to test your matrix-mean program, try it on [1 1], then [1 1 1],...
• Run boundary cases (smallest, biggest)
• Make sure results are reasonable
• Recursively apply all these ideas to ever-higher levels of calls (more complex programs using functions already debugged)
• NEVER use real data until you use data you understand, probably made up yourself to be perfect, whose answer you know exactly already.

Demo 1

Debugging Tools

Attaway 5.1

Debugging is optional CSC160 content. It might grab you or leave you cold. Enjoy or ignore. I've only used Matlab's debugger a bit, but it's standard, easy, and worth getting acquainted with, since such a tool can be VERY helpful in a language like C or Java.

A Matlab Debugging Doc Page

• Tracing...following every statement's execution. Use
  echo my_fun on; echo my_fun off , other echo variants.
• Command line: see help debug (a dozen debugging commands). At a breakpoint, execution stops, control returns to command line and you can single-step, examine and change variables, etc.
• Single-stepping (over function calls and into function calls)
• Setting and clearing breakpoints
• Examining the call stack (you see this when Matlab has an error in a nested function call). Stack shows where all the calls came from in their respective level.
• Graphical Debugger: in editor window after a breakpoint
• Examine variables: after a breakpoint, hover the mouse over a variable in editor window.

Demo 2

"Busy Work !?!"

This course is only partly about programming, and less about Matlab.

It's mostly about the scientific and engineering techniques that make up the rest of the course.

This future material is not "busy work" for random Matlab practice. Far from it -- it is Matlab whose importance recedes (check the grade weightings on the projects).

Matlab, as well as mathematics, are now just tools to use (and we hope expand your command of) for experiments and analysis in several centrally-important engineering techniques.
