Looping: CS Theory

Computer Science Theory tells us:

If programs had a fixed sequence of execution, or even included repetition any pre-computed number of times, computers would be less powerful than they are (i.e. could compute answers to fewer questions no matter how long they computed).
With I/O, bit-manipulation operations (e.g. arithmetic), AND any type of looping or iteration construction that allows repetition subject to a condition computed in the loop,
All computers become equally powerful i.e., they can compute any 'computable' function (given time). (!!) This is known as the Church-Turing Thesis.
Non-computable function? e.g. a program P to determine if any other program halts (as opposed to going into infinite loop). Why? easy: use P to write a program that reads itself and then halts if it doesn't halt and loops if it does halt. Contradiction, so P cannot exist.
There are infinitely more non-computable real numbers than computable ones. In fact there are only as many computable reals as there are integers. Why? easy: you can describe any program with a single (large) integer: e.g. just concatenate the ASCII codes of its characters.

Looping: Practical

Repetitive operations "R" computers. E.g.:

Do the same thing to every one of a large number of items.
Produce tables.
Perform some computation over and over until "done" like adding the next term to an infinite series, running a simulation
Operating systems: more or less glorified "read, evaluate, print" loops.

Counted loops ( primitive recursion in recursive function theory): perform loop some given number of times
(e.g., "brush hair 100 strokes before bed.").

Conditional loops ( general recursion): repeat until done
(e.g., "whip until fluffy")

Vectorized Commands as Hidden Loops

In Matlab, since matrices are the primary datatype, explicit looping is often not needed. Vectorized commands operate on entire matrices. With Matlab we take this for granted, but it's both a luxury and a curse: a powerful capability that can be misused.

Attaway often refers to vectorized versions of commands as "efficient". They are terse to us humans, but in fact vectorized commands are implemented under the hood as loops, so they can't be inherently more efficient in terms of execution time. For example,
avec = sqrt(bvec*5 + 4); is_greater_vec = some_vec > 5.0; % produces logical vector

Good Rule: create a matrix or vector if you really need all its values (say to make a plot or as input for further processing). Do not construct a vector to hold input that can be generated and used one piece at a time.

For instance, to add all the numbers from one to a billion, we don't need a billion-long vector[1,2,3...]. We need one variable to hold the sum and we need to count: to generate the numbers to be summed one at a time. We need a for loop.

The vectorized sum(1: 1000000000) (sum one to a billion) gives an out-of-space error, but
total = 0; for value = 1:1000000000 total = total + value; end

after running for several seconds, actually produces an (approximately) correct result.

For Loops (Attaway 4.2)

Sometimes called a "do loop" (for Fortran), a for loop implements counted loops. Reserved words: for, end, (continue, break, return).

for loopvar = range_expr statements; end

Executes the statements (down to the for's matching end statement) once for every assignment to loopvar from elements of range-expr.

A for loop always creates an index variable (sometimes called a loop variable) that is usually used in the loop, but may not be. Above it is called loopvar.
The range-expr must be a range: one of the simplest looks like 1:N, and the most trivial looks like 3. The trivial case only "does the loop once", so we don't need the loop!
Forms like for n < 5 ... are syntactically invalid.
If x is a number, a form like for loopvar = x*2 + 10 statement; statement; end executes the statements once with the value of the expression.
Vectors are valid ranges, which provides an useful way of looping with an arbitrary set of index values.

The range expression can be pretty general: Possibilities include operator expressions and vectors.

for loopvar = 1:N for loopvar = 10:2:20 for loopvar = x: 2*y: z+150 for loopvar = [2 5 -98 13 pi] % sets loopvar to each element for loopvar = some_vec % sets loopvar to each element

Index Variables

The index variable is so-called because it is so often used as an array index, in essence to find the address of the value we want.

In many programming languages variable names i and j are generically used for index variables(x_i, get it?).
In Matlab, this can lead to problems, since i and j are pre-defined constants that represent sqrt(-1). If you assign to these variables, you will lose Matlab's intended semantics for them.

Two Simple Examples

Enthusiastic hello:

for repetitions = 1:3 % i is set from 1 to 3 % but not used in loop! disp('Howdy!'); end

Accumulator problem: accumulate partial answers into a single answer variable (very common).

For example, compute sum of n², as n goes from 1 to 10.
sumsq = 0; % a box for sum, initialized to 0 for n = 1:10 sumsq = sumsq + n^2; % update and save sum end

Some Bad Examples

What happens if we try the following? for n = 1:10 sumsq = 0; % a box for sum, initialized to 0 sumsq = sumsq + n^2; % update and save sum end

Above runs fine, just probably not what we want. So that's a problem... no error message.

On the other hand if we make up our own syntax and come out with gibberish like:
y = for x < 5 sum +x end

We see an unhelpful Illegal use of reserved keyword "for". Which is technically right but pretty vague. And since there are other problems in our little loop above, either fixing one problem (or making it worse!) is only going to lead to another useless error message. You're dying here.

Moral: Trying to rewrite code without understanding what has gone wrong (aka Programming at Random) usually doesn't work.

STOP, THINK, READ THE BOOK, TYPE HELP.
Make sure you understand what the problem is you are trying to solve, and how to solve it. If you don't, there is no way you can tell a computer how to do it. Computers have no sense, common or otherwise.
Try printing out values while inside the loop.
Try pausing at the end of each iteration, and making sure that all your variables have the value you think they ought to.
Try a simple case for which you know the answer and watch where the program goes astray when it tries to compute it.
If all else fails, pause the program after each step and make sure it is doing what you want it to.

More Bad Examples

More horrible examples of how NOT to Compute sum of n², as n goes from 1 to 10. Try to figure out what each of them will do...

sumsq = 0; % a box for the sum, initially 0 for n = 1:10 % n^2; % no % sumsq = n^2; % no % sumsq(n^2); % no! Stop Guessing!!! end

Examples using accumulators:

Assume the following script is stored in for_script.m.
vecsum = 0; % a sum accumulator vecprod = 1; % a product accum. (why not 0?) N = length(a_vector); for indexvar = 1:N % indexvar goes from 1 to N vecsum = vecsum + a_vector(indexvar); % add into accum. vecprod = vecprod * a_vector(indexvar); % mpy into accum. end vecsum vecprod

Then

>> a_vector = 1:2:9; % = [ 1 3 5 7 9] >> for_script vecsum = 25 vecprod = 945

Several ways NOT to get the sum...
vecsum = 0; N = length(a_vector); for indexvar = 1:N % indexvar goes from 1 to N % vecsum = sum; % syntax error % vecsum = sum(1:N); % computes wrong sum N times % indexvar; % what???!!! % vecsum + indexvar; % computed and discarded. % vecsum = vecsum + indexvar; % wrong sum end

True, Matlab has built-ins for vector sum and product, but we're learning for-loops not memorizing a million Matlab commands.

Study the following examples and use them for templates. Look up the syntax (Matlab help etc.) of any construct you are not absolutely sure of. Computers are very picky about syntax, and will fail (likely with useless error messages or none at all) if you stray from the path.

Search Example

A common operation is to step through a number of cases and remember the "best" or "worse" or "smallest", etc.
A standard approach is to create a "minimum" variable, assign the first element in a list (vector, matrix...) to it, and loop through the rest of the elements replacing the minimum if you find a smaller element (Att 4.1.2).

function [min_val, min_index] = myminvec(vec) min_val = vec(1); min_index = 1; % Don't forget this!! for index = 2:length(vec) if vec(index) < min_val min_val = vec(index); min_index = index; end % if end % for end % function

Again, matlab has min,max built-ins, and even a variant that returns the minimum and its index, as above! But we're learning programming here, not memorizing idiosyncratic matlab-only features. Notice matlab's min can take a matrix but then has a possibly surprising result.

>> y = [ 4 -1 2 7]; >> min(y) ans = [2 -1] % mins of columns (!) >> min(min(y)) ans = -1

More Examples: Mundane and Bizarre

Add all positive elements of a vector vec
PosSum = 0; for ndx = 1:length(vec) if vec(ndx) > 0 PosSum = PosSum+vec(ndx); end end

Reverse a vector.
avec = [ 1 1 2 3 5 8 13]; N = length(avec); backvec = zeros(1,N); for forward_ndx = 1:N backwards_ndx = N-forward_ndx+1; backvec(backward_ndx) = avec(forward_ndx); end backvec backvec = 13 8 5 3 2 1 1

The following example illustrates the perils of data-type conversion! What's supposed to happen here? What does happen here?? Very strange... (hint: Attaway 1.5.3.1: linear indexing)

for ndx_var = [1 2; 3 4] ndx_var % just report its value end ndx_var = 1 3 ndx-var = 2 4


Nested  FOR Loops (Attaway  4.2)

It is very common to nest for loops inside of
for loops e.g., to add all matrix elements


function sum = mat_add(A)
% Sum elements of A
% sum is name of MatLab builtin but no conflict (scoping!)
  [NRows NCols] = size(A);
  sum = 0; % initialize
  for row = 1:NRows
    for col = 1:NCols
      sum = sum + A(row, col);
    end % NCols
  end % NRows

end % mat_add

This is same as the vectorized sum(sum(A));

Note that nesting loops results in a dramatic increase in the number of operations carried out - the product of the the number of elements in the ranges. This gets out of hand very fast, so loops are seldom nested terribly deeply.

Please Don't Do This!

Please Don't Do This!!

Exercise 3.30: function out = choose(in) in = input('give me a number'); choice = menu('choose a function', 'ceil','round','sign'); .....

Functions talk to other functions! They don't need humans!

Comparative Syntax and Semantics

Diversity! In Matlab: for Mndxvar = 1:10 fprintf('\n Mndxvar = %d', Mndxvar); Mndxvar = 2*Mndxvar; end yields Mndxvar = 1 Mndxvar = 2 Mndxvar = 3 ... Mndxvar = 9 Mndxvar = 10

In C: #include main() { int Cndxvar; for (Cndxvar = 1; Cndxvar <= 10; Cndxvar= Cndxvar+1) { printf("\n Cndxvar = %d", Cndxvar); Cndxvar = Cndxvar*2; }} yields Cndxvar = 1 Cndxvar = 3 Cndxvar = 7

Why should we not be surprised?

Return Statement

The return, break and continue commands are special sorts of goto commands, and so can lead to confusing and un-structured code. They should be used judiciously, and mainly in specific situations.

The return statement is the most frequently used of the three. When encountered in any function or script, it causes a return of control to the location in the calling program immediately following the call.

Functions normally return when the code reaches the end of the function. The return statement simply causes an "early" return. Since every return statement in a function goes to the same, well-defined location, there is little opportunity for confusion, and thus limited opportunity for abuse. Use when convenient.

Break Statement

The break command breaks out of a for- (or while-loop) to the statement just after its end. Consider the following script.

% script forit.m for i = 1:5 disp(i*i); end i fprintf('\n with break\n'); for i = 1:100 if (i*i) > 75 break end disp(i*i); end i % end of script

Running the script produces the following:

>> forit 1 4 9 16 25 i = 5 with break 1 4 9 16 25 36 49 64 i = 9

The break statement can be hard for a reader to follow, as he or she needs to scan ahead to find the end of the current loop to discover where control transfers. It is best reserved for situations such as exiting under error conditions, where other means of getting out would be awkward.

In the preceding example, the break destroys the implicit semantics of the for loop, as it does not execute the expected number of times. A better approach would be to use a while loop (next topic) and make the condition part of the loop proper.

Continue Statement

The continue statement is less common than break. it aborts the current iteration of the loop and resumes iterating with the next iteration of the loop.

Here we want to print out the indices of the positive values in a vector
vec = 2*rand(1,10) -1 % random numbers between -1 and 1 for i = 1:length(vec) if vec(i)<0 continue end i % print if get here end

Running the above produces:
vec = Columns 1 through 6 0.52711 0.68345 0.48181 -0.47806 0.92415 -0.28688 Columns 7 through 10 -0.35907 0.62747 -0.64415 0.88629 i = 1 i = 2 i = 3 i = 5 i = 8 i = 10

Note that the code is a bit obscure and hard to follow, and this particular program would be better written using an if statement.

This is often true, and if you find yourself wanting to use a continue or a break statement, you should ask yourself if there is a clearer way of structuring the code.

The most common "legitimate" use of these statements involves cleanly getting out of nested code when error conditions occur.

WHILE Loops (Attaway 4.4)

For-loops normally repeat a certain, pre-computed number of times.

In contrast, while-loops continue repeating until a specified (boolean, true-false) conditional test is met. Associated reserved words: while, end, (break, continue, return).

Since while loops repeat until a certain condition is met, it is easy to write for-loops using while-loops but not vice-versa. Thus in the absence of 'tricks' (such as using conditional break statements), while-loops implementing 'general recursion' are more powerful than for-loops ('primitive recursion').

The general form of a while-loop is shown below:

while condition-expression
action
end

The condition must be true to get loop started and must become false sometime or you get infinite loop (exit one of these with CTRL-C if it happens to you in Matlab).

While loops are good for stopping when you find what you want (say a negative value in a vector, or you've reduced an error below some threshold).

FOR or WHILE?

For loops can be implemented with while loops, but in practice, the choice conveys significant information about how the algorithm works and it is important to know when one or other is called for.

Specifically, the choice is:
Do N Times (where we know N in advance)
vs.
Do until job's done (and it's hard to say how long that will take)

Example: for vector X,

for i = 1:length(X) X(i) = X(i) / 7; end

divides every element of X by 7. Since we can easily know X's size, a for loop is appropriate.

On the other hand, suppose we want to add up 1/N for N = 1,2,3... etc. until the sum is only changing very slowly. Stating this in terms of a change threshold we want to get below is more natural than trying to figure out the appropriate N beforehand. Hence a while is appropriate.
denominator = 1; term = 1/denominator; sum = 0; while term > .0001 % we're not done! sum = sum + term; denominator = denominator + 1; term = 1/denominator; end sum sum = 9.7875

(Aside: 1/1, 1/2, 1/3,... is the harmonic series from its place in the theory of music overtones (unison, octave, fifth, third...). What is its infinite sum?)

Other comments:

Some languages have a repeat (statements) until (condition) loop, which always goes thru the statements once and then checks the condition.
The condition can be logical expression (ANDs and ORs...), arbitrarily complicated.
Other uses: counting, (set a sum variable to 0 and increment it in the while loop) and checking user input for errors (Att 4.4.4-4.4.5).

Break, Continue, Return

Work in while loops the same as in for loops

Break terminates execution of the loop. In a nested loop, it leaves the innermost loop (the one it is in).

Continue stops execution where it occurs and starts execution at the NEXT iteration of the loop. In a nested loop, it continues the loop it occurs in.

Return stops execution of a function and returns immediately to the calling program.

Straight Talk on Vectorized Commands

Red Ice Creations (www.redicecreations.com)

For this chapter and for the Pi project, please forget about "vectorizing" your code. Don't do it! Refer to matrix elements (Mat(i,j)), not matrices (Mat). And don't use the : range operator to refer to rows or columns of a matrix. Use loops. Don't create matrices for simple series like 'all odd numbers between 3 and 97' that can easily be done by repetition. On the other hand, for irregularly-spaced data like [ 1 2 5 10 20 50 100 200 1000], clearly a data vector is called for.

Matlab trys to convert data types (integer to matrix, for instance), and to interpret operators (like *) 'correctly'. Its choices can be mysterious, and they can be wrong: you get wrong answers or puzzling error messages.
It's easy to lose track of whether a variable is a number or a matrix if you are not disciplined. Always know! Don't invite invisible data-type conversions.
Don't automatically think to use a matrix to hold a range of values (like input values to be tested). e.g. "convert all the temperatures between 0 and 100 Fahrenheit to Centigrade." Matrix approach takes space as well as time. Loops only take time!
for x = 1:1000 for y = 1:1000 for z = 1:1000 statements; % A billion (x,y,z)s!! end end end
"Overloaded" operators (like * for matrix, scalar, and complex multiplication) are not common features of other languages.

Mean and Standard Deviation (Attaway 12.1)

We'll be seeing a lot of these, e.g. in Prog. Asst. 3.

Informally, statistics are numbers used to describe collections of other numbers, or data. Three common ones are the mean (average), the median, and the variance ( = standard_deviation²).

We know about means and medians. Do we?. Variance and standard deviation measures how "spread out" the data are, how much the various data points differ from their mean value. If they're all the same, the variance is zero.

Mean of a matrix. Classic accumulator problem. initialize sum to zero, Use nested for-loops iterating over rows and columns, adding M(row, col) to sum. After for-loops, divide sum by rows*cols.
Attaway's not very helpful on the standard deviation. Her definition is OK in line 3 of 12.1.2 but there's nothing about how to calculate it efficiently, or why N-1 is used (instead of N) in the denominator.
In the limit of large numbers of data points, variance is basically the "second moment" of the data in a physics context, defined as Var(X) = E[(X - μ)²], where E is the expectation (or Average, or Mean) operator, and μ is the mean of X.
If all the X's are close to the mean μ = E(X) the variance is small. The differences are squared, so they're always positive, and big differences (referred to as "outliers") contribute a relatively large amount. The standard deviation σ (X) = √ Var(X).

Computing the Variance

Naive implementation: read and use whole data set twice: one 1:N for-loop to calculate the mean, then another 1:N to do the subtraction, squaring, and addition to find the variance.

But! Notice, in the second moment equation above,

Var(X) = E[(X - μ)²]
       = E[X² - 2 μ X + μ²]
       = E[X²] - 2 μ E[X] + μ²
       = E[X²] - μ²
       = E[X²] - E[X]²

Thus we can calculate mean and variance with only one pass through the data (one loop). In the loop that currently calculates the mean by summing X(i,j), we just need to accumulate another sum, this one sums the squares of the elements, X(i,j)*X(i,j). When done summing (after the for-loops), calculate the mean of the summed X's and X²'s, do the subtraction and a square root, and we've got mean, variance, and stdev..

Some Theory for those interested

The calculation above is a pure 'second moment' calculation, summing the squared differences and dividing by N. Why is Attaway's formula different, dividing by (N-1)?
For reasonable size N it doesn't make much difference. The problem is that in a statistical (not physics) context, we are trying to estimate a number that represents an entire data population of whom we have only seen N samples (our N data points). We are not allowed to count samples twice; that would bias (shift) the answer. If we added the mean μ in as a sample, that would decrease the variance (since N would go up). But the mean tells us nothing new about the samples: in fact from the mean and any (N-1) samples we can re-construct the "missing" Nth sample.
BUT we use the mean μ in calculating the variance. AND we use all N of the data points too. We're clearly counting something twice, and to offset the resulting biased (too low) estimate of variance, we should divide by the number of independent data points we are entitled to: since μ is functionally equivalent to a data point, we are now only entitled to say we have N-1 points for the variance computation, given the mean.
Matlab's var(), std() built-ins compute the statistical (normalized by N-1) version, but each has an extra argument that causes the 2nd-moment version to be returned.
For more on this topic, see the Model-Fitting lecture, which includes a general formula analogous to the "fast computation" version of the 2nd moment.

CONTROL SUMMARY

Almost always, one of these statements is best for what you want to do.

IF : Depending on a single test (condition) you do either one action or another.
SWITCH : Multi-branch version of IF . Depending on which of several CASE values a test variable has, do the appropriate one of several actions.
FOR : Do a particular set of commands a known number of times.
WHILE : Do a particular set of commands as long as, or until, a single condition is met.

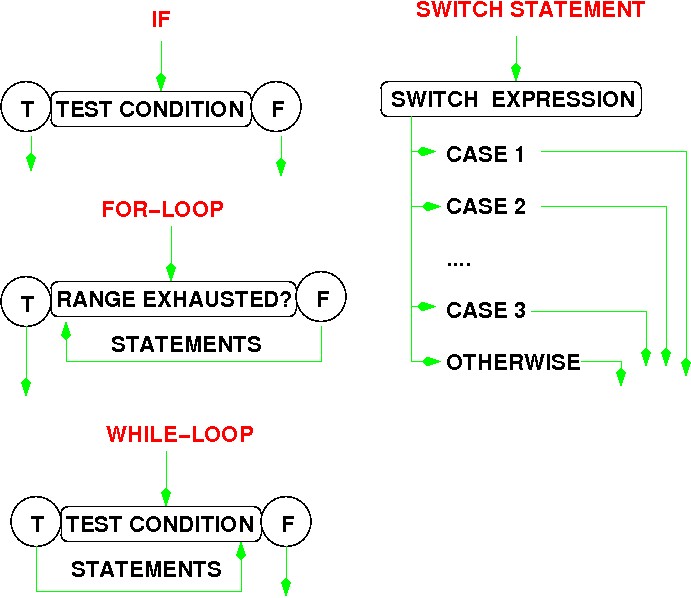

FLOWCHART FRAGMENTS

Vectorized Commands and 1-D indices

Destroy before reading or read and forget! This is very ugly stuff!

For some simple tests, Matlab has a vectorized version, which unfortunately uses a form of indexing where matlab pretends an n-dimensional matrix is really a long 1-D vector (matrix written out columnwise). We've seen this weirdness before when we put a 2-d matrix in as the 'range' in a for-loop.

The following is for your horrified amusement only.
We do not recommend knowing about, let alone using, this confusing nonsense.

>> a = magic(3) a = 8 1 6 3 5 7 4 9 2 % magic square >> g5 = a > 5 % employ matrix form of > g5 = 1 0 1 0 0 1 0 1 0 % a binary matrix % Treat relation as index! >> a(a>5) % same as a(g5) ans = 8 9 6 7 % returns values > 5 in a column >> find(a>5) % returns indices of values >5 ans = 1 6 7 8 % BUT they're the 1-D form of indices!
