Weiss Ch. 9.5

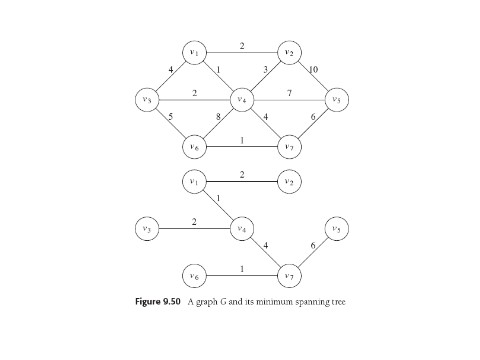

MST of UNdirected graph is usual case: tree that connects all vertices of G with minimal cost. So G must be connected. MST not necessarily unique. Natural idea: how connect all nodes cheapest?
Elementary reasoning assures us a greedy approach should work.

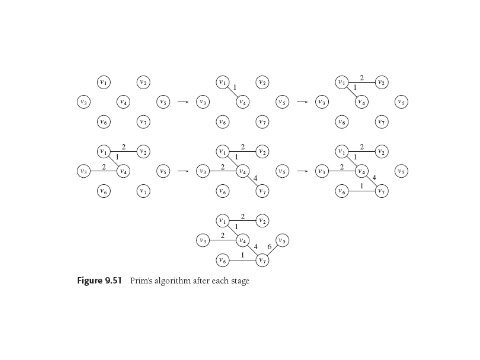

Pick a root and then add one vertex at a time. Just add that vertex v and edge from u to v, such that u is in the tree, v is not, and Cost(u,v) is minimal amongst all such edges.

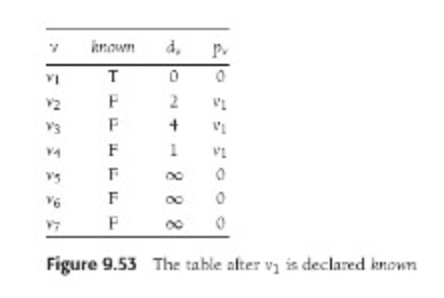

This is just like Dijkstra's A, only dv is the cost of one edge, and the update rule is simpler. Thus Weiss brings back his tables, which for instance look like this: Here we have just chosen v1 as root, and its three naighbors v2, v3, v4 have their edge costs inserted. They're not in the tree yet so they're unknown, but it's easy to see we're going to pick v4 to add next, and when we do the cost of adding v3 is going to drop to 2, and v3's pv will change from v1 to v4.
So as for D's A, order O(|V|2) without priority queues
(heaps), optimal for dense graphs and with binary heaps get
O(|E| log|V|), good for sparse graphs.
Another greedy plan: select edges in order of of smallest weight, accept one if it doesn't cause a cycle.

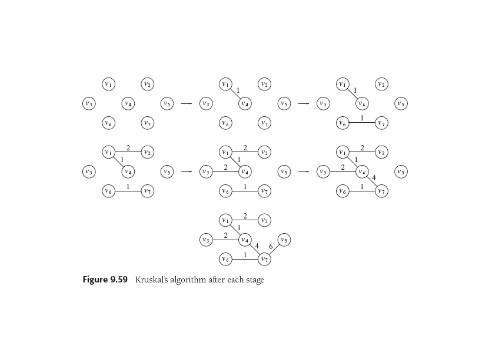

K's A starts with a forest of single nodes, which are merged to form one final MS tree. The underlying algorithm is union-find, but we're going to want a priority queue too. We define nodes to be in the same set if they are connected in the current spanning forest.
Rather than sort the edges, heapify and deleteMin. Then if both ends (u,v) of an edge are in same set, reject it (cycle). Else union the two sets containing u and v. Worst case you have to examine all the edges (there may be one really big one); O(|E| log |E|), dominated by the heap.

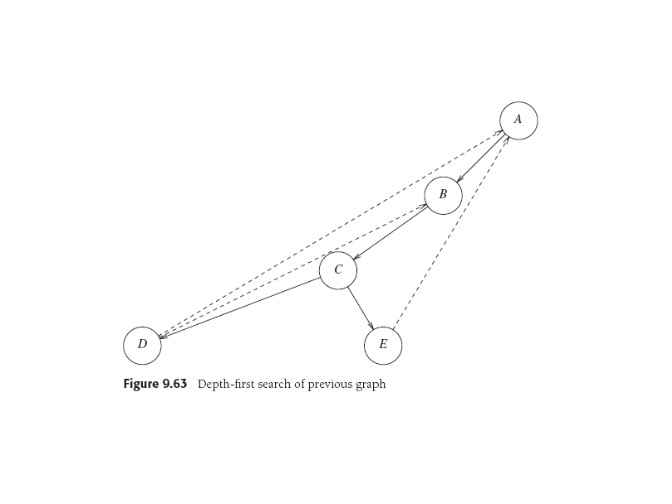

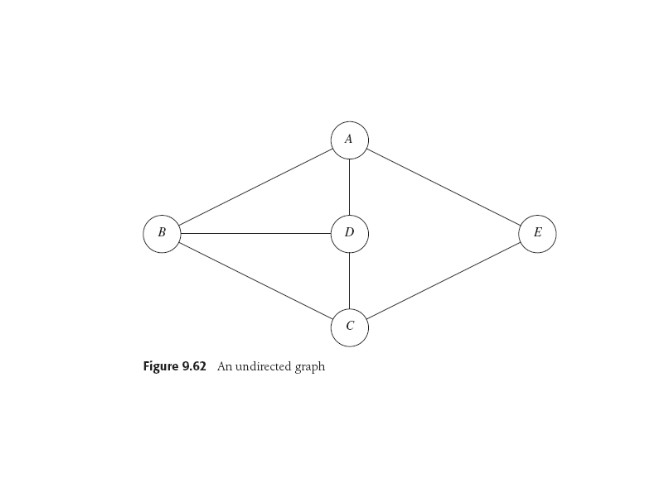

DFS induces a "depth-first spanning tree" on the graph, since it
doesn't cycle. In AI we often talk of a search tree in a state-space
graph. To relate the two one can use "back edges" that are not taken
in the search, which we can imagine being generated at each newly-visited
node: all its successors that have been visited already are given
back edges pointing at them. An unconnected tree needs a re-start for
the search process if all nodes aren't visited when the DFS ends.
Biconnectivity: A graph is biconnected when it cannot be disconnected by removal of any single vertex. Clear logistical analogs--e.g. redundant routes, components. Disconnecting vertices are "articulation points". Weiss gives pseudocode and discusses some proofs and niddles.
DFS is the basis of a linear-time algorithm to find articulation points, thus answer the biconnectivity question.

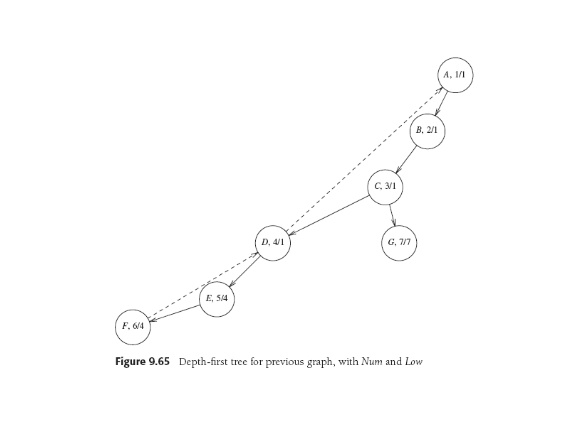

Low(v) can be efficiently computed from its definition: Low(v) is the minimum of:
Since we need to compute Low(v) for all v's children before computing v's, we have postorder traversal algorithm. If Num(v)>Num(w) it's a tree edge, else a backedge. So to compute Low(v), use adjacency list to look at all nodes adjacent to v (from adj list), keep track of minimum. That's O(|E|+|V|).
Articulation points?
Why?

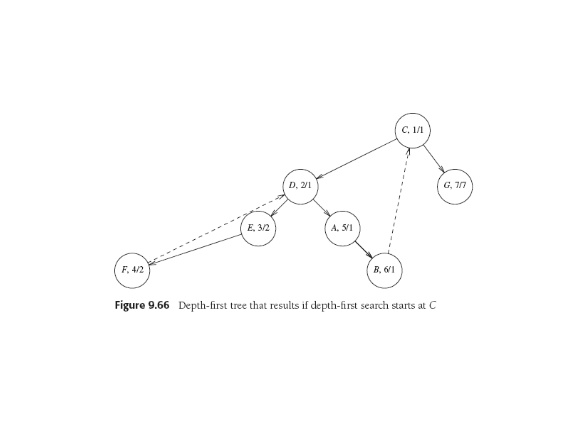

Defns say C and D are articulation points. D's child E only has one way to get to any node above D: go through D.
Naively implementing all this takes three passes, preorder traversal to get Num(v), postorder to get Low(v), Third pass finds articulation points. BUT! job can be done much more elegantly (Code in Figs 9.67 - 9.69).
These puzzles were the subject of the first work in graph theory in 1736.

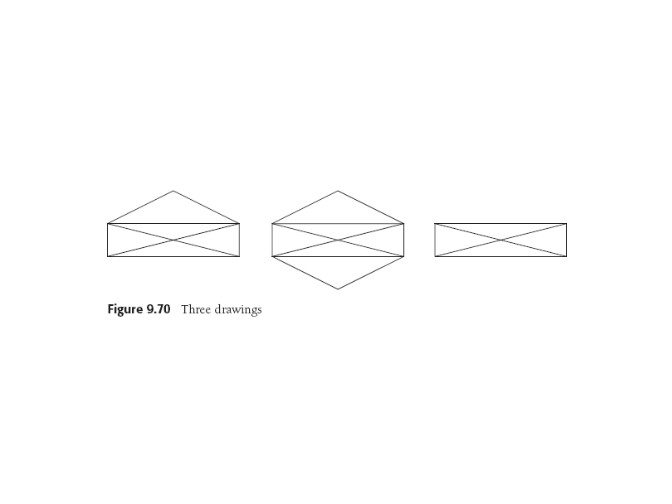

Puzzle: Draw these figures w/o lifting pencil, each line covered exactly once. And can you finish where you started?
"Euler path (tour) and circuit" problems: traverse all the edges (NOT vertices!!) just once. The Euler circuit ends where it started, Form of solution is same as path, so Weiss does circuit. Some things obvious:

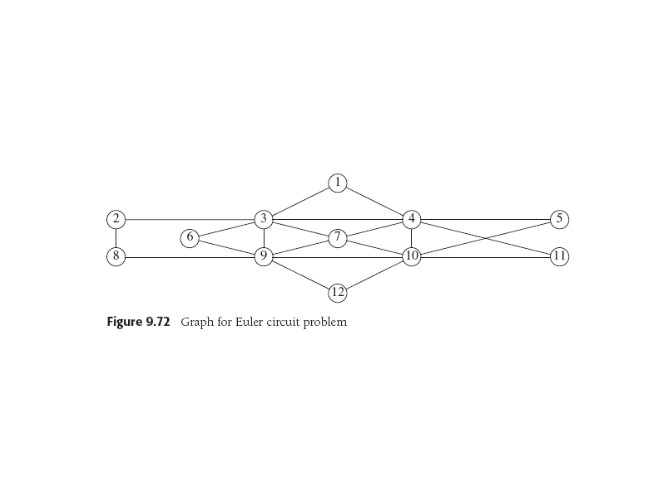

Algorithm builds up sub-solutions by splicing. This graph has an Euler circuit.

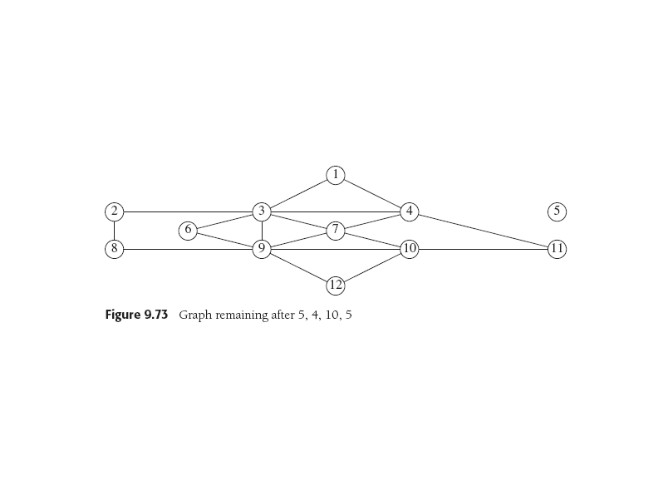

If start at 5, a DFS might find 5,4,10,5, so we'd have a sub-circuit
and a remaining problem:
If then start at 4 could DFS and get 4,1,3,7,4,11,10,7,9,3,4. Splicing:
5,4,1,3,7,4,11,10,7,9,3,4,10,5. Etc.
Splicing is O(1) if path is a linked list. Maintain pointer to last edge scanned in adj. list so can start there later. Begin next depth-first search at start of the splice point...so work in vertex search is O(E) over the algorithm, so can make whole job O(|V|+|E|).
